+6
-
25ft long
-
Sleeps 6
-
1 slides
-
3.0L V6 BluTec
-
188 HP

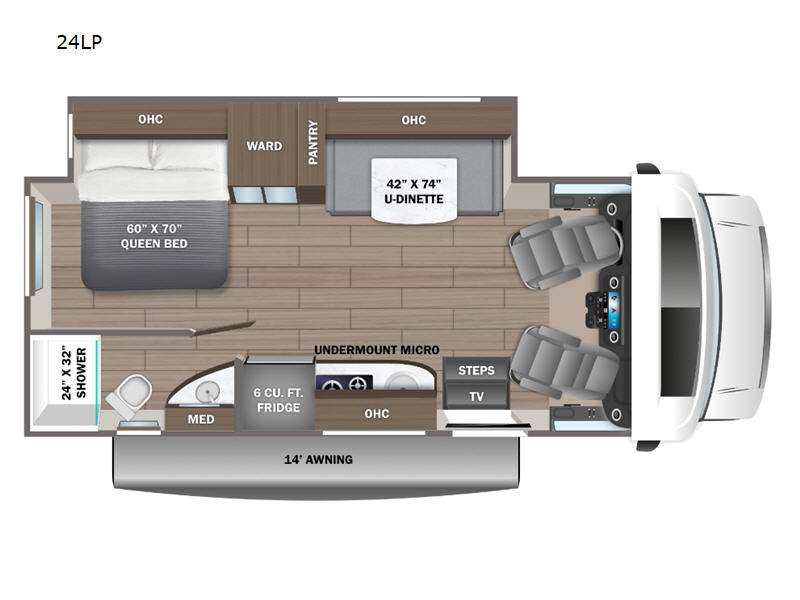

24LP Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 25 ft 2 in | Ext Width | 8 ft |
| Ext Height | 10 ft 11 in | Int Height | 6 ft 8 in |
| Exterior Color | BLACK | Hitch Weight | 5000 lbs |
| GVWR | 11030 lbs | Fresh Water Capacity | 43 gals |
| Grey Water Capacity | 31 gals | Black Water Capacity | 31 gals |
| Tire Size | LT215/85R16 | Furnace BTU | 30000 btu |
| Fuel Type | Diesel | Miles | 250 |
| Engine | 3.0L V6 BluTec | Chassis | Mercedes-Benz 3500 |
| Horsepower | 188 hp | Fuel Capacity | 26 gals |
| Wheelbase | 170 in | Number Of Bunks | 1 |
| Available Beds | Queen | Torque | 325 ft-lb |
| Refrigerator Size | 6 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 2 | Shower Size | 24" x 32" |
| Number of Awnings | 1 | LP Tank Capacity | 41 lbs |
| Water Heater Capacity | 6 gal | Water Heater Type | Truma AquaGo Comfort Plus Tankless |
| AC BTU | 15000 btu | Basement Storage | 14 cu. ft. |
| TV Info | LR LED | Awning Info | 14' Girard Armless w/LED Light Strip |
| Gross Combined Weight | 15250 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | W1X8N33Y7PN264028 |
Description
Jayco Melbourne Prestige Class C diesel motorhome 24LP highlights:
- Full Wall Slide
- Queen Bed
- U-Shaped Dinette
- Pantry
- Panoramic Front Window
- 200W Solar Panel
Get away from the hustle and bustle of your everyday routine and explore in comfort in this motorhome that offers everything you need, plus some! Once at your destination you can easily setup the full wall slide for more interior floor space and the 14' awning that offers protection from the elements when relaxing outdoors. You can then sit at the U-shaped dinette with stow away pedestal legs or swivel the driver and passenger seats to enjoy the LED TV. The cook will have full amenities such as a two-burner drop-in cooktop and convection microwave to make warm meals, and a 6 cu. ft. refrigerator to store the cold items. There is a full bathroom to get cleaned up before bedtime, a queen bed and a rear window to enjoy a good night's sleep and great views of your campsite, plus a wardrobe for your clothing. And your family or friends can sleep on the cab-over bunk or the dinette offers extra sleeping space once converted.
Each Melbourne Prestige Class C diesel motorhome by Jayco includes sidewall, rear wall and slide room walls that are bonded together with Stronghold VBL lamination to create the lightest, yet strongest construction available in the RV industry. There is also a one-piece, seamless front cap that resists wear and tear from years on the road. The interior offers an overhead bunk with 750 lbs. capacity which is way over the industry standard and allows for more overnight guests. And you will find seatbelts installed in every designed seating location to keep your favorite people safe. Other standout features include the Firefly total coach control system giving you full control of key operations from a wall-mounted touchscreen and mobile app, a Truma AquaGo Comfort Plus tankless water heater, a water filtration system, ball-bearing drawer guides, and an 80-inch interior ceiling height with a padded vinyl ceiling giving you more space to enjoy.
- DENMARK
- EARLY FROST PAINT
- CSA STANDARDS
- CSA CHASSIS UPCHARGE
- CUSTOMER VALUE PACKAGE
- FRONT CAP B-PLUS
- CUSTOMER VALUE PKG.
Features
Standard Features (2024)
Customer Value Package
- One-piece, seamless, fiberglass front cap
- Automotive-bonded, panoramic window in front cap with power shade
- Frameless windows
- Backup and side-view cameras
- Girard® armless patio awning with LED light strip
- 1,000W inverter
- Heated holding tanks (12V pads)
- Truma AquaGo Comfort Plus tankless water heater
- Keyless cab entry
- Power, swivel, heated leatherette driver and passenger seats
Driving
- Premium Mercedes-Benz® 3500 chassis with 170 in. wheelbase
- 2L V4 Twin Turbo 211HP diesel engine with electronic fuel injection with 332 ft.-lb. torque
- 9-speed automatic transmission
- 220-amp alternator
- E-rated highway tires- 215/85R16
- Aluminum rims
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000 lb. rear hitch receiver with dual connector
- 7-pin plug
- 12V chassis battery
- 26.4 gal. fuel tank
- 5.8 gal. DEF tank
- 10.25 in. integrated Mercedes-Benz® MBUX infotainment center with GPS, Apple® CarPlay™ and Android Auto™
- Heated, remote-controlled, side-view mirrors
- Leather tilt steering wheel
- Smartphone tray with wireless charging
- Active Distance Assist DISTRONIC®
- Active lane keeping assist
- Crosswind assist
- Hill start assist
- Brake assist plus
- Traffic sign assist
- Attention assist
- Breakdown management
- Emergency call system
- Rain-sensing windshield wipers
- LED high performance headlights
- Headlight assistant
- Driver and passenger airbags
- Power windows and door locks
- Auxiliary start switch
- Custom-molded ABS surround in cab-over area
- Overhead bunk with 750 lb. capacity
- Privacy curtain for cab area
Exterior
- StrongholdVBL™ roof, floor and sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max
- floor, R-5 max walls)
- One-piece, seamless, fiberglass roof
- Partial fiberglass rear cap
- Premium Sikkens full-body paint
- Chrome grille
- Electric stabilizer jacks
- Slideout awning(s)
- Entrance door with industry’s largest travel-view
- window
- Electric-powered entrance step with integrated
- house battery compartment
- Aluminum skirt-hung baggage doors
- Third brake light
- Prep for satellite dish
- Cable TV hookup with RG-6 coax
- Winegard 2.0 Wi-fi/4G antenna
- Onan® 3,600W LP generator with auto gen start
- 200W solar panel with dual controller
- (2) 12V house batteries
- Transfer switch with reverse polarity protection
- 30-amp electrical service
- 12.2 gal. propane tank (41 lb.)
- LP quick-connect hookup
- Exterior utility center
- Winterization drain system
- Black tank flush
- Outside shower
- 12V demand water pump
- Water filtration system
Interior
- Custom-molded ABS surround in cab-over area
- Overhead bunk with 750 lb. capacity
- Firefly total coach control system with wall-mounted
- touchscreen and mobile app
- 80 in. interior ceiling height with padded vinyl ceiling
- High-intensity LED ceiling lights
- High-gloss hardwood fascia
- Tecnoform® high-gloss cabinetry
- Ball-bearing drawer guides
- Jayco-exclusive, easy-operation legless dinette
- table (24RP)
- U-shaped dinette with stow away pedestal legs (24LP)
- 12V USB charging station in dinette area
- 2-point lap safety belts in all designated seating
- locations
- Car seat tethers (select floorplans)
- Day/night roller shades
- 15,000 BTU A/C
- 30,000 BTU auto-ignition ducted furnace
- Powered roof vent in living area with wall switch
- LED HD TV in living area
- 6 cu. ft. 3-way refrigerator
- 2-burner, drop-in cooktop with flush cover
- Convection microwave
- Tecnoform® high-gloss countertops
- Stainless steel sink with wooden cover/cutting board
- Decorative kitchen backsplash
- Shower with decorative surround and skylight
- Stainless steel bathroom sink
- Porcelain toilet with foot flush
- Powered roof vent in bathroom with wall switch
- Queen-size bed with bedspread (24LP)
- Queen-size power Murphy bed (24RP)
- Queen-size manual Murphy bed (24NP)
- (2) twin-size beds with filler cushion converts to
- king-size bed (24TP)
- USB port(s) in bedroom
- Under-bed storage (select models)
- LED HD TV in bedroom (24NP)
- Bedroom TV prep (24LP, 24TP)
- Large wardrobes
- Smoke alarm
- Carbon monoxide detector
- Fire extinguisher
Options
- Hydraulic leveling jacks
- 3,200W diesel generator
- B-plus front cap
- Theater seating ILO dinette (24LP, 24RP)
- Folding windshield sun shade
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
